Castlewood Ascension Chimney Range Hood with Removable Upper Access

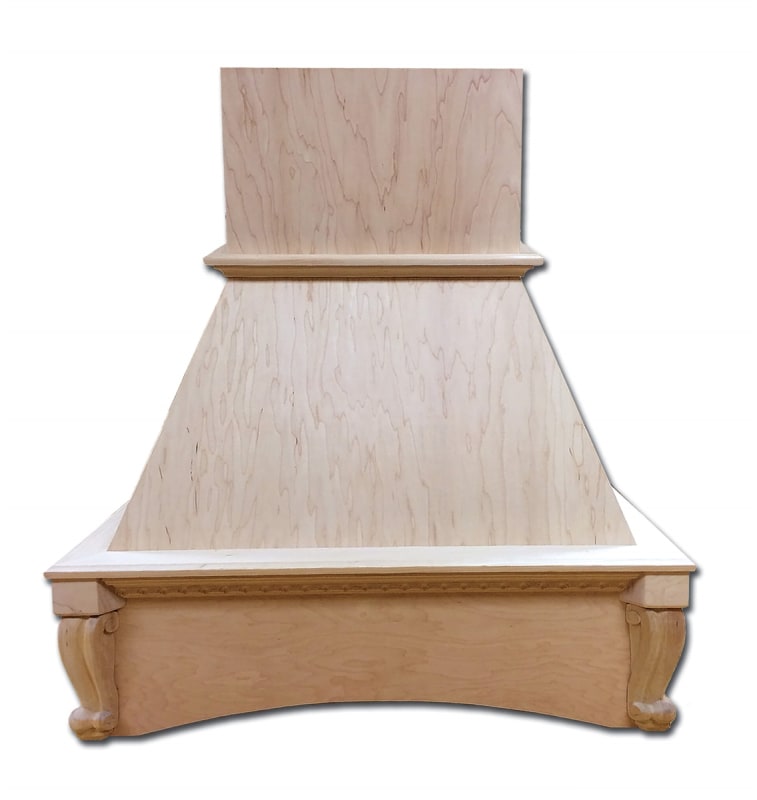

Castlewood SY-WCHAS-D Ascension Chimney Range Hood with Removable Upper Access



Alternative Views:


To customize this range hood design please fill out and submit the hood customization form. Customize This Hood!
Product Price $1,194.00

Price with Selected Options: $1,194.00


Product Code: SY-WCHAS-D


SY-WCHAS Species*:


SY-WCHAS Size*:

Optional Accessories
Click to view another Ventilator/Liner

Ventilator/Liner*:


Chimney Extension*:


Qty:
Description Technical Specs Ventilator Options

Castlewood's SY-WCHAS-D Ascension Chimney Hood with Removable Upper Access will make an elegant upscale addition to any kitchen.

Castlewood has developed a new mounting system that allows the bottom portion of the hood to be mounted to the wall first so the liner, ventilator and duct-work can be installed and inspected before the upper portion of the hood is installed. The new construction maintains the integrity of the hood design and eliminates the need for extra corner molding to hide seams between adjoining panels.

Available Species

Cherry, Maple, Red Oak, and Primed Maple

Available Sizes

SY-WCHAS-30-D: H 44-1/2 | W 33-1/8" | D 21-1/2"
SY-WCHAS-36-D: H 44-1/2 | W 39-1/8" | D 21-1/2"
SY-WCHAS-42-D: H 44-1/2 | W 45-1/8" | D 21-1/2"
SY-WCHAS-48-D: H 44-1/2 | W 51-1/8" | D 21-1/2"

Additional Info
These wood range hood covers are designed to accept the liners and ventilators listed on this page as options. If you have a third party ventilator, please contact us to make sure the unit will fit. Most third party ventilators will require customization to the hood.

If you are struggling to decide which ventilator is the right fit for you, consider the range or cooktop this hood will cover. 250, 350, and 390 CFM ventilators are generally designed for electric cooktops, while 500 CFM and higher are designed for gas cooktops.

Standard chimney hoods are designed to fit a 9' ceiling application. Options to add or remove the chimney extension are available for higher and lower ceiling heights. Chimney extensions are also trimmable to fit in between heights.

The removable upper access option is designed to make installation of the duct work easier. It is also beneficial if any building code inspections are necessary. The hood will come in two pieces which allows the bottom portion of the hood to be mounted to the wall first so the liner, ventilator and duct-work can be installed and inspected before the upper portion of the hood is installed. This construction maintains the integrity of the hood design and eliminates the need for extra corner molding to hide seams between adjoining panels.

Range hoods are large shipments and thus are shipped LTL freight. If this is being shipped to a residence, the carrier will contact you to schedule a delivery appointment.

This range hood qualifies for FREE SHIPPING! The hood, ventilator, and liner will be securely wrapped and packaged on a pallet. The pallet will be delivered LTL Freight through one of our approved carriers. Free shipping includes all the fees associated with a freight shipment like residential delivery fees and lift gate service fees. The lift gate service is used on residential deliveries, by the carrier, to lower the pallet off the truck so you do not have to off load it yourself.
Features
  • Hardwood Plywood and Solid Lumber Construction
  • 1/2" Rear Plywood Stretchers for wall mounting
  • Accepts SY-HLB series rectangular Powder Coated Steel Liners (sold separately)
  • Select from 250, 390 or 500 Broan CFM Ventilation power packs (sold separately) or
  • Ascension 350SL, 350SS, and 500 CFM Ventilation power packs (sold separately)
  • 30" and 36" models accept Ascension 900 CFM Professional Ventilators (requires HLZ series Liners)
  • 42" and 48" models accept Ascension 1200 CFM Professional Ventilators (requires HLZ series Liners)
  • Available in Cherry, Maple and Red Oak
  • Includes standard 14" height Chimney Extension
  • Optional 24" and 36" height Chimney Extensions available
