Castlewood Rustic XL Shiplap Chimney Range Hood - White Wash

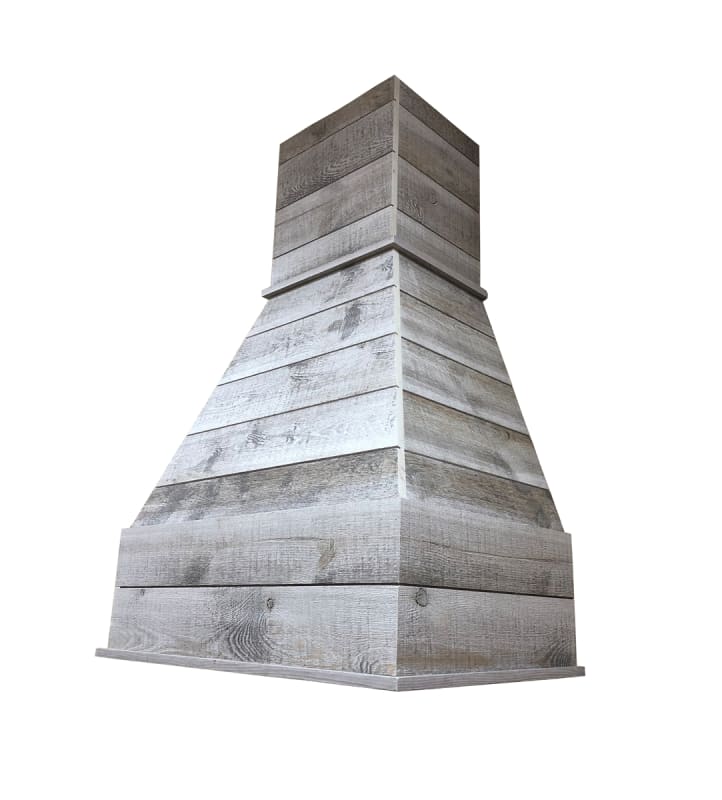

Castlewood SY-WCSXLR-WW Rustic Shiplap Chimney Range Hood
The finish depicted in this photo is a close approximation of the actual color but is not guaranteed to match the finished product exactly.

To customize this range hood design please fill out and submit the hood customization form. Customize This Hood!
Product Price $1,470.00

Price with Selected Options: $1,470.00

Availability:: Ships in 3-7 business days.
Product Code: SY-WCSXLR-WW


Optional Accessories
Click to view another Ventilator/Liner


Rustic Shiplap Chimney Extension*:

Removable Access Panel*:

Description Technical Specs Ventilator Options
One of today's most popular interior design trends is the use of rustic shiplap. Castlewood's SY-WCSXLR-SS White Wash Rustic XL Shiplap Range Hood employs the shiplap look and construction and is pre-finished with a custom stain.

The XL Shiplap version is designed specifically to fit the larger ventilators that do not fit the standard shiplap model.

This design uses weathered spruce planks and is pre-finished with a Sherwin-Williams water based stain. The Rustic Shiplap Range Hood is popular on many of the hit DIY TV shows out now, and is offered at a fraction of the price. Handcrafted in the southern United States, each Shiplap hood is a truly unique piece that will serve as the centerpiece of your kitchen.

Available Species

Spruce (Weathered and pre-finished with a Sherwin-Williams water based stain)

Available Sizes

SY-WCSXLR-30: H 42-1/2" | W 31" | D 20-3/8"
SY-WCSXLR-36: H 42-1/2" | W 37" | D 20-3/8"
SY-WCSXLR-42: H 42-1/2" | W 43" | D 20-3/8"
SY-WCSXLR-48: H 42-1/2" | W 49" | D 20-3/8"

NOTE: The finish depicted in the photo is a close approximation of the actual color but is not guaranteed to match the finished product exactly. Sample color blocks are available upon request.

Additional Info

These wood range hood covers are designed to accept the liners and ventilators listed on this page as options. If you have a third party ventilator, please contact us to make sure the unit will fit. Most third party ventilators will require customization to the hood.

If you are struggling to decide which ventilator is the right fit for you, consider the range or cooktop this hood will cover. 250, 350, and 390 CFM ventilators are generally designed for electric cooktops, while 500 CFM and higher are designed for gas cooktops.

Standard chimney hoods are designed to fit a 9' ceiling application. Options to add or remove the chimney extension are available for higher and lower ceiling heights. Chimney extensions are also trimmable to fit in between heights.

The removable access option is designed to make installation of the duct work easier. It is also beneficial if any coding inspections are necessary. The removable panel consists of 2-3 shiplap planks constructed into a removable panel that pops on and off the hood. The catches are hidden and this does not alter the appearance of the hood.

Range hoods are large shipments and thus are shipped LTL freight. If this is being shipped to a residence, the carrier will contact you to schedule a delivery appointment.

This range hood qualifies for FREE SHIPPING! The hood, ventilator, and liner will be securely wrapped and packaged on a pallet. The pallet will be delivered LTL Freight through one of our approved carriers. Free shipping includes all the fees associated with a freight shipment like residential delivery fees and lift gate service fees. The lift gate service is used on residential deliveries, by the carrier, to lower the pallet off the truck so you do not have to off load it yourself.
  • Constructed with Weathered Spruce Planks (Rough Grain)
  • Pre-Finished with Sherwin-Williams water based stain
  • 1/2" Rear Plywood Stretchers for wall mounting
  • Accepts SY-HLB series rectangular Powder Coated Steel Liners (sold separately)
  • Select from 250, 390 or 500 Broan CFM Ventilation power packs (sold separately) or
  • Ascension 350SL, 350SS, and 500 CFM Ventilation power packs (sold separately)
  • Also accepts SY-HLZ series Stainless Steel Liners (sold separately)
  • Select from 900 and 1200 CFM Ascension Ventilation power packs (sold separately)
  • Includes Standard 15" Rustic Shiplap Chimney Extension
  • Optional 26-1/4" and 37-1/2" height Rustic Shiplap Chimney Extensions available
  • Chimney Extension is trimmable and shipped attached to the rear stretcher. See below

Ductless Conversion Kit for Ascension Ventilators Ductless Conversion Kit for Broan 300, 400 and 600 CFM Ventilators
Product Price $225.00

Product Price $300.00

Ductless Conversion Kit for Ascension Ventilators Ductless Conversion Kit for Broan 300/500CFM Ventilators
